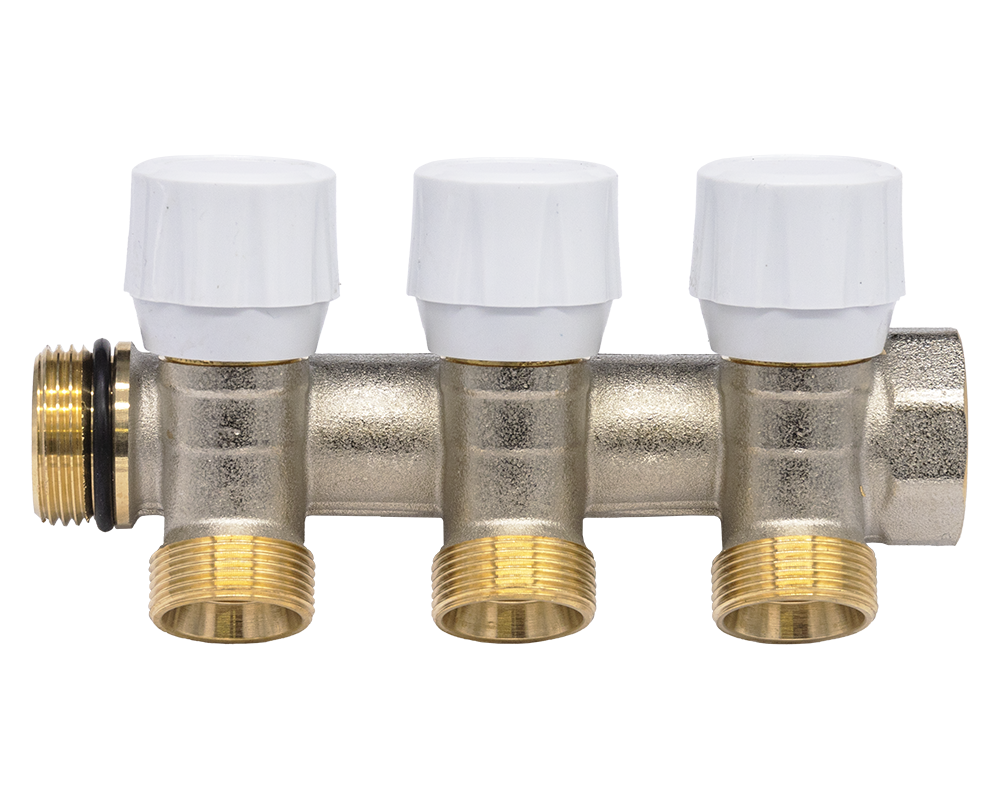

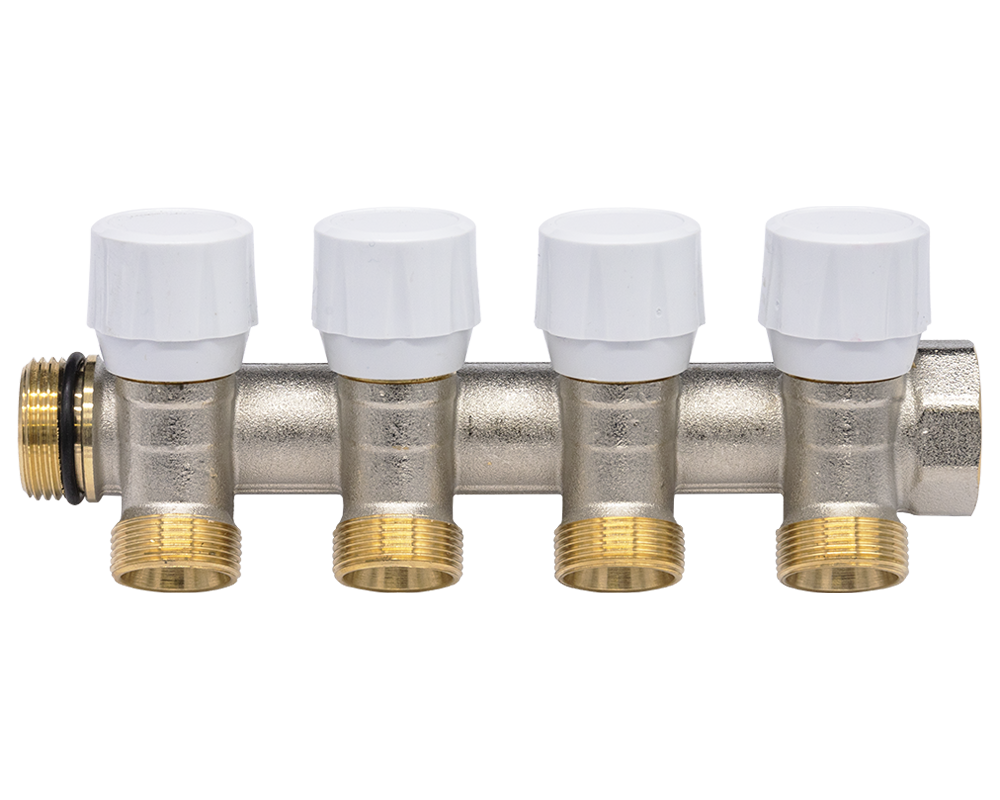

Modular linear manifold with oblique valves

461

Modular linear manifold with oblique valves, soft sealing and automatic aligning.

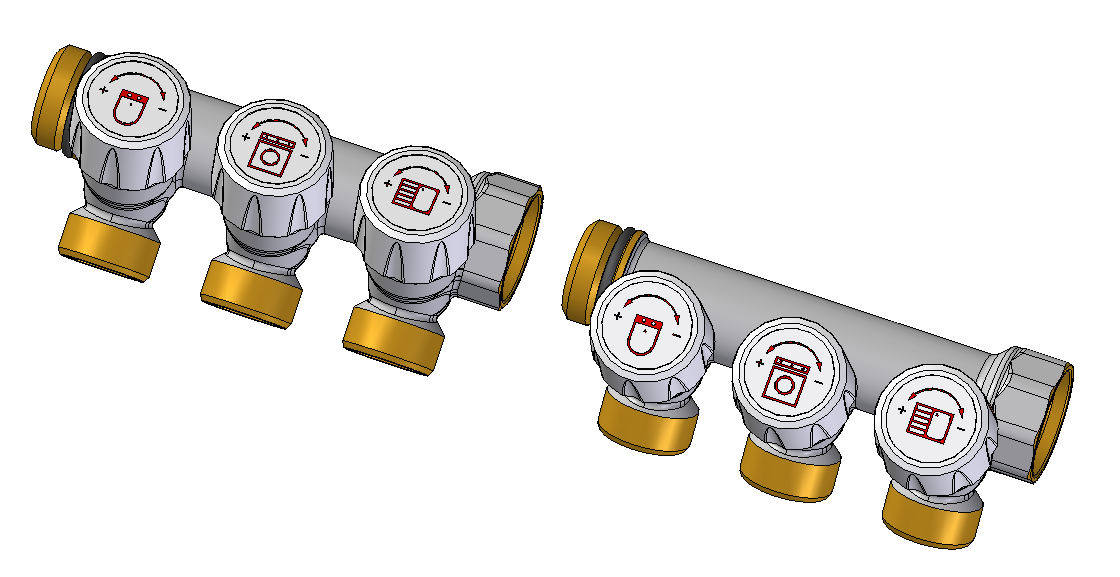

Each manifold is equipped with red/blue labels for the designation of the different outlet for heating and sanitary use.

Finishing: nickel plated
Screw with double oring sealing
Outlets interaxis: 40mm
Max working temperature: 100°C
Max working pressure: 10bar
Fluids: water or glycol solutions (max 30%)
Suitable for adaptors for copper pipe art. 690, plastic pipe art. 691, multilayer pipe art. 696

CodeSize 1Size 2VersionMF
00461120343/4"24x192
125
00461130343/4"24x193
125
00461140343/4"24x194
125

M = Handle color - F = Finishing color

461ek
Modular linear manifold with oblique valves
Vai al prodotto
460
Modular linear manifold with valves
Vai al prodotto

429
Male plug for manifold
Vai al prodotto
425
Male plug with reduction for manifold
Vai al prodotto
410
Female plug for manifold
Vai al prodotto
5130
Ball valve with pipe union
Vai al prodotto
472

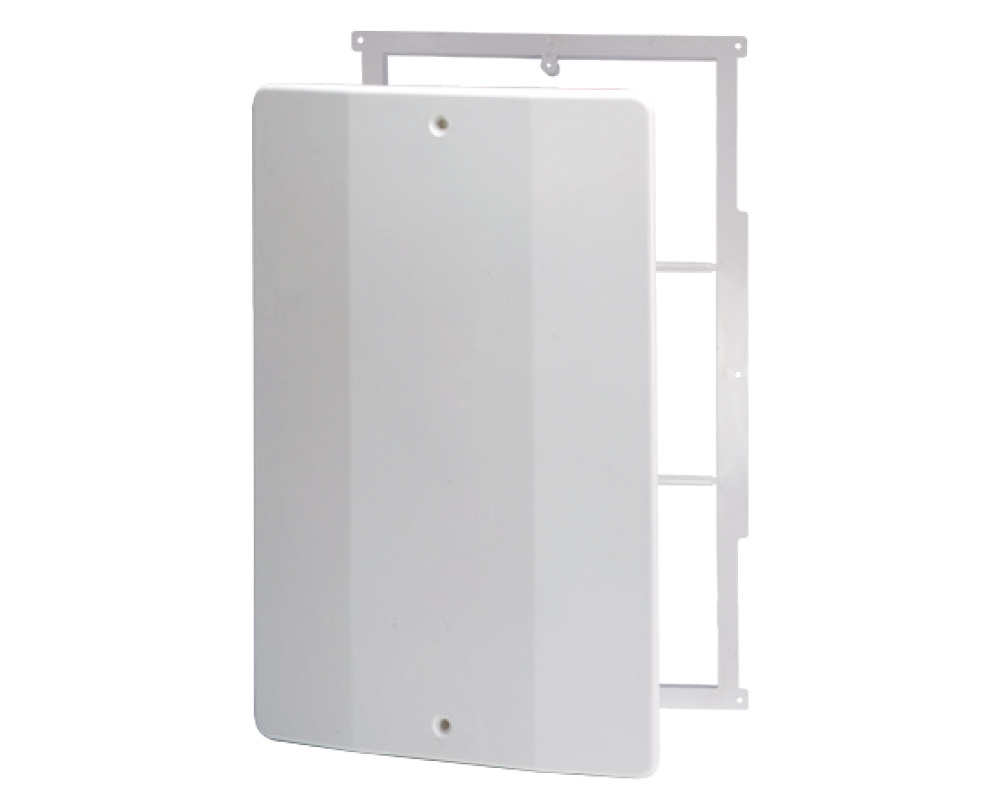

Plastic inspection box
