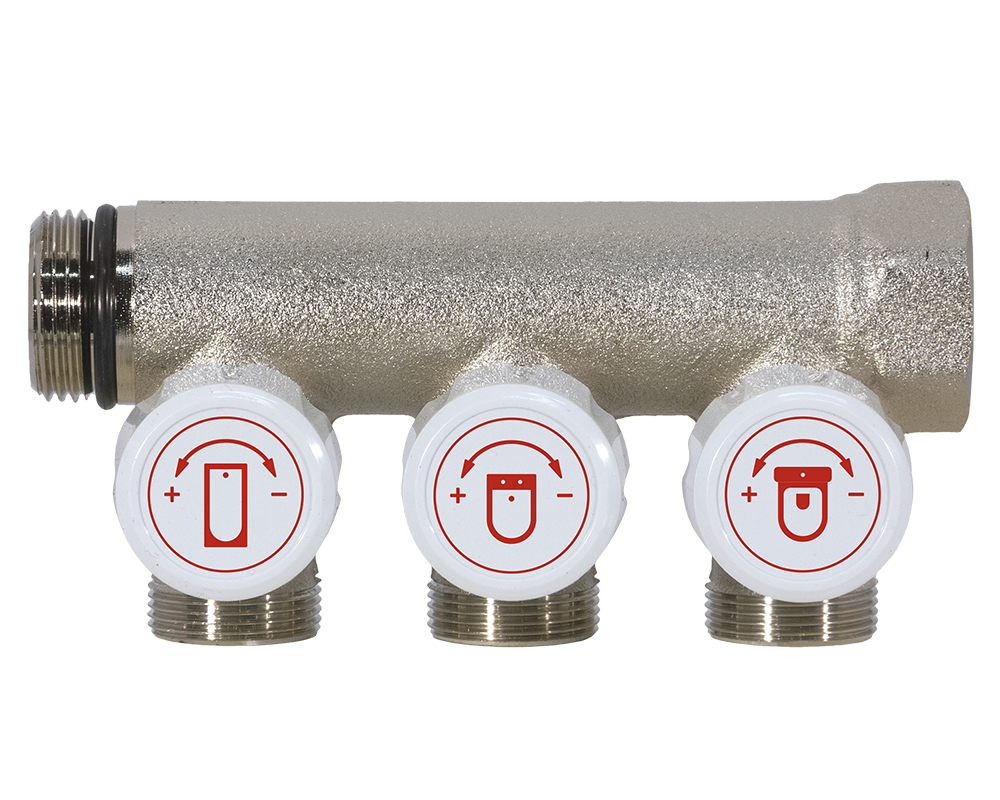

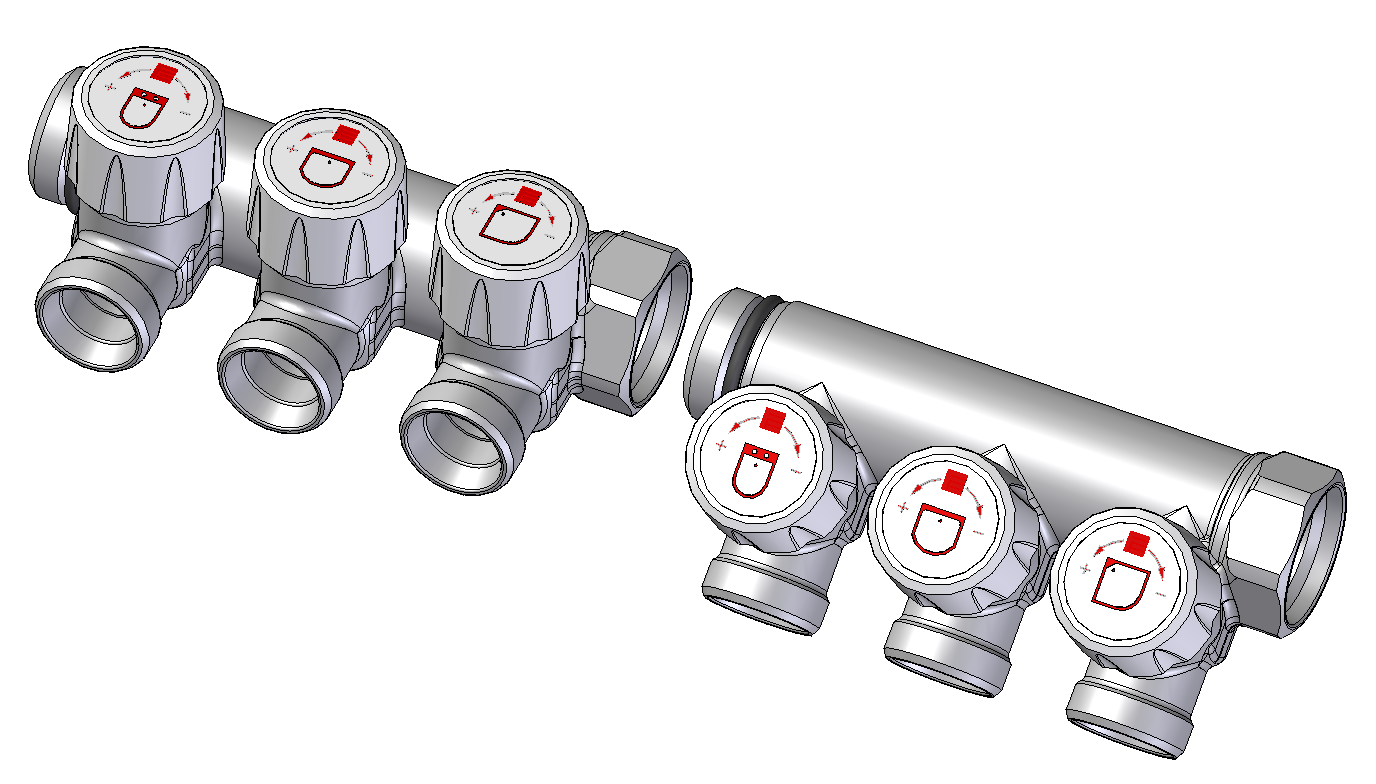

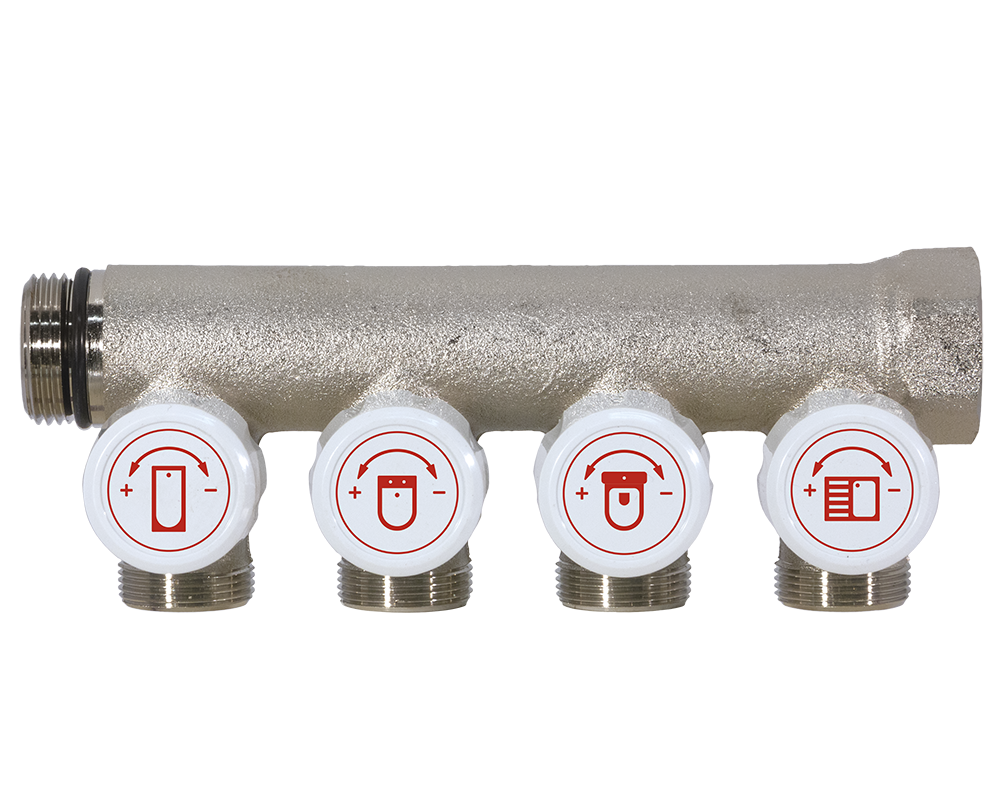

Modular linear manifold with valves, soft sealing and automatic aligning.
Each manifold is equipped with red/blue labels for the designation of the different outlet for heating and sanitary use.

Finishing: nickel plated
Screw with double oring sealing
Outlets interaxis: 38mm
Max working temperature: 100°C
Max working pressure: 10bar
Fluids: water or glycol solutions (max 30%)
Suitable for adaptors for copper pipe art. 690, plastic pipe art. 691, multilayer pipe art. 696
