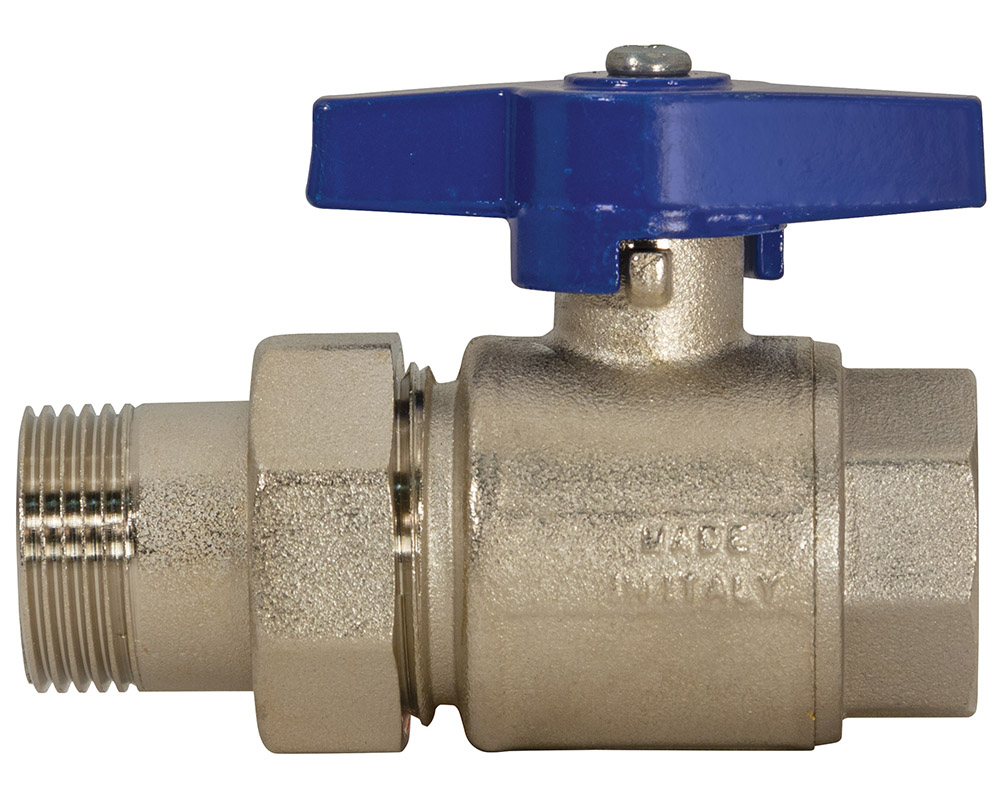

Ball valve with pipe union
5130
Male-Female ball valve with butterfly and full flow.
Body in forged brass
Screw with double oring sealing
Finishing: nickel plated
Max working temperature: 120°C
Max working pressure: 20bar
Fluids: water or glycol solutions (max 30%)
Ball valves must be used in totally open-close position.
| Code | Size 1 | Size 2 | Version | M | F | ||
|---|---|---|---|---|---|---|---|
| 0513012012 | 1/2" | 20 | 100 | ||||
| 0513011012 | 1/2" | 20 | 100 | ||||
| 0513012034 | 3/4" | 10 | 60 | ||||
| 0513011034 | 3/4" | 10 | 60 | ||||
| 0513012100 | 1" | 10 | 50 | ||||
| 0513011100 | 1" | 10 | 50 | ||||
| 0513012114 | 1 1/4" | 6 | 30 | ||||
| 0513011114 | 1 1/4" | 6 | 30 |
M = Handle color - F = Finishing color
