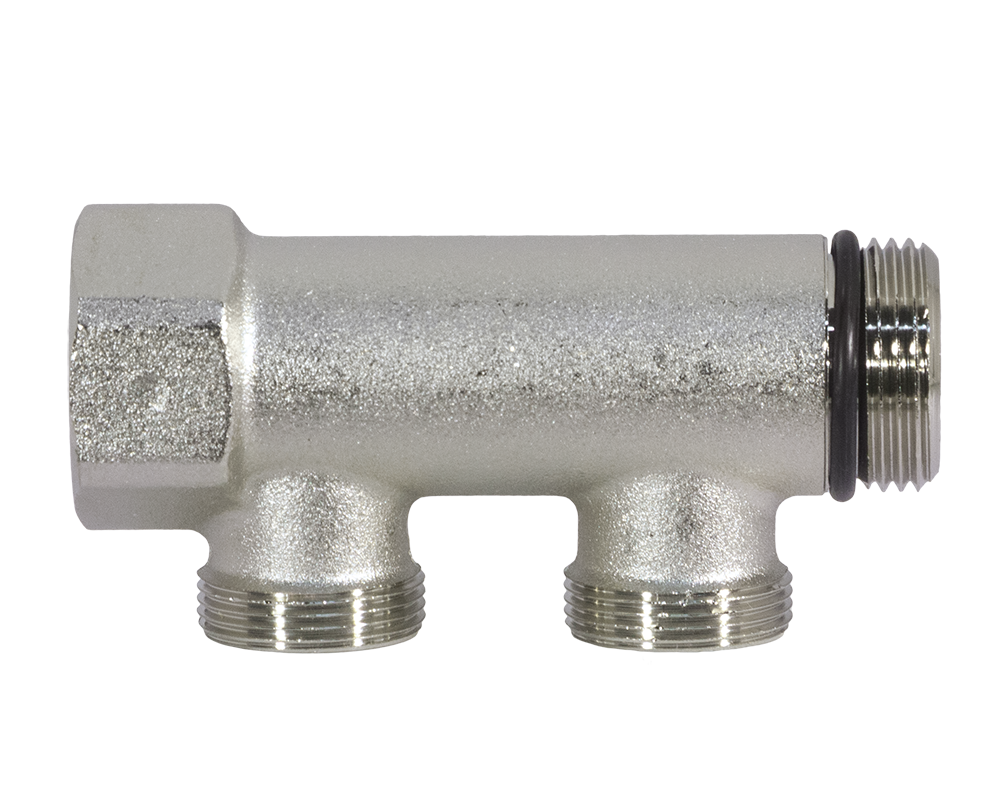

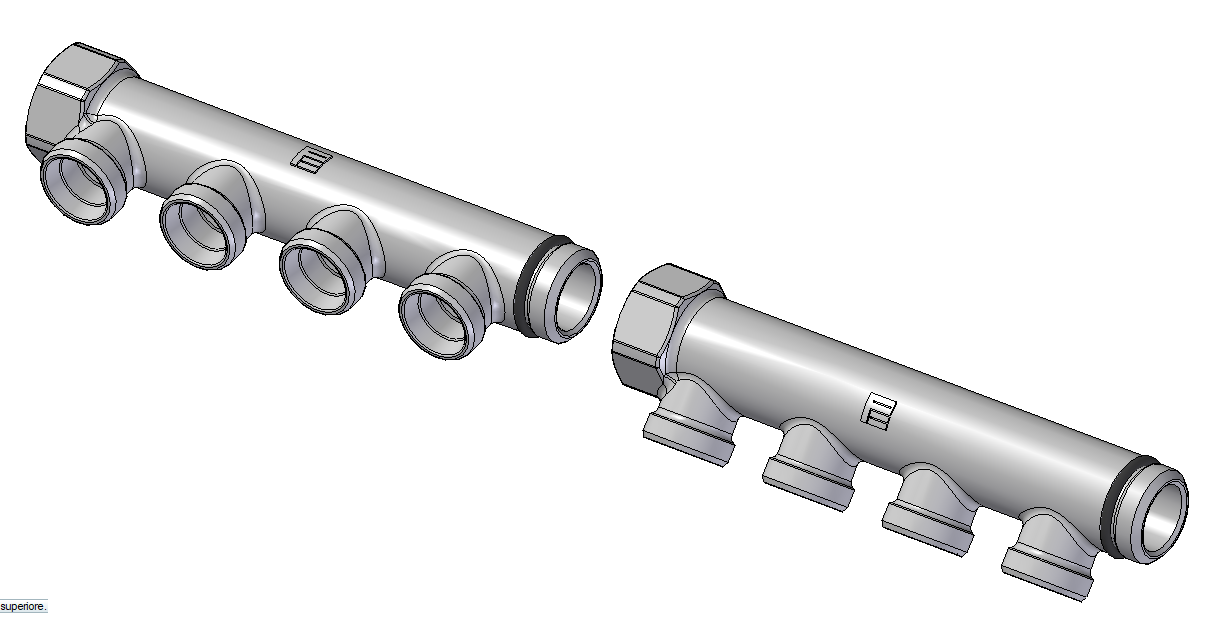

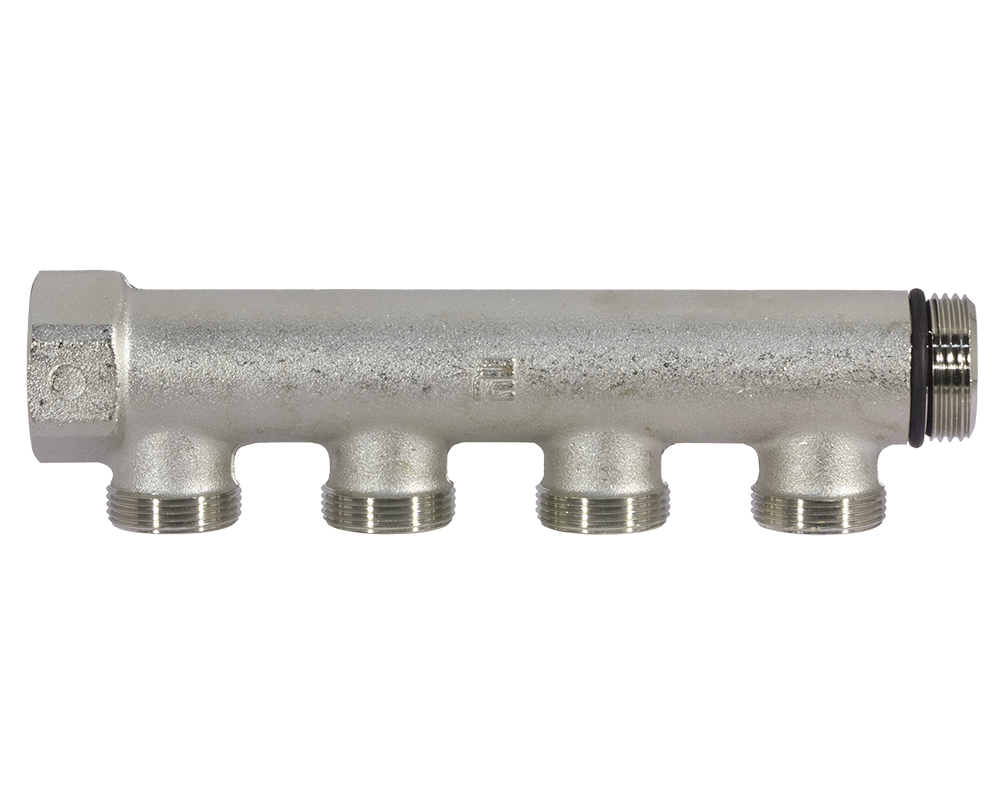

Modular linear manifold
432
Modular linear manifold with soft sealing and automatic aligning.
Finishing: nickel plated
Outlets interaxis: 38mm
Max working temperature: 100°C
Max working pressure: 10bar
Fluids: water or glycol solutions (max 30%)
Suitable for adaptors for copper pipe art. 690, plastic pipe art. 691, multilayer pipe art. 696
| Code | Size 1 | Size 2 | Version | M | F | ||
|---|---|---|---|---|---|---|---|
| 0043213402 | 3/4" | 24x19 | 2 | 10 | 120 | ||
| 0043213403 | 3/4" | 24x19 | 3 | 10 | 120 | ||
| 0043213404 | 3/4" | 24x19 | 4 | 8 | 80 | ||
| 0043211002 | 1" | 24x19 | 2 | 10 | 120 | ||
| 0043211003 | 1" | 24x19 | 3 | 10 | 120 | ||
| 0043211004 | 1" | 24x19 | 4 | 8 | 80 | ||
| 0043211142 | 1 1/4" | 24x19 | 2 - INT. 50 mm | 8 | 48 | ||
| 0043211143 | 1 1/4" | 24x19 | 3 - INT. 50 mm | 6 | 60 |
M = Handle color - F = Finishing color
