Set point mixing unit

8150

Set point mixing unit with thermostatic head for the regulation of the supply flow, probe holder, safety thermostat, incorporated check valve, shut-off valve and thermometer.

The sealing with the manifolds is guaranteed by PTM system (Pintossi soft sealing), which allow a quick and safe installation, without the use of additional sealing materials, like hemp or PTFE ribbon.

The unit can be installed on both sides of the manifold’s composition.

Available with Taco ES2 high efficiency pump.

Pump connections: 1″
Manifolds connections: 1″
Pump interaxis: 200mm
Max working temperature: 100°C
Max working pressure: 10bar
Fluids: water or glycol solutions (max 30%)
Thermostatic head temperature range: 20-70°C
Thermostat set temperature: 55°C±3°C  (reset 45°C±3°C)

Suitable to be used with high temperature manifolds using MM fittings kit with PTM system art. 670.

CodeSize 1Size 2VersionMF
08150100001"
1

M = Handle color - F = Finishing color

8150p
Set point mixing unit with pump
Vai al prodotto
8155
Set point mixing unit group
Vai al prodotto
8155p
Set point mixing unit group with pump
Vai al prodotto

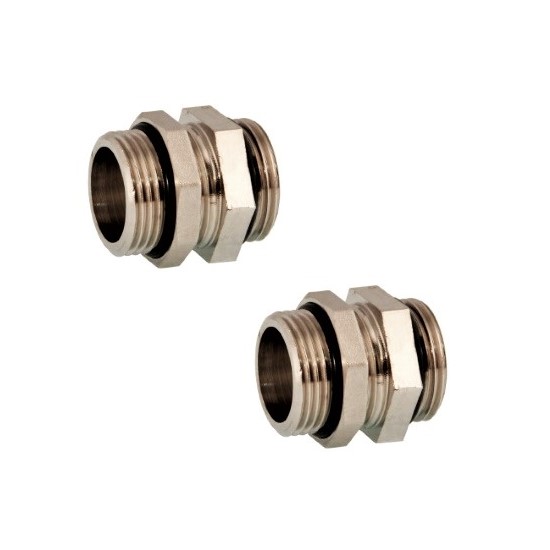

670k
