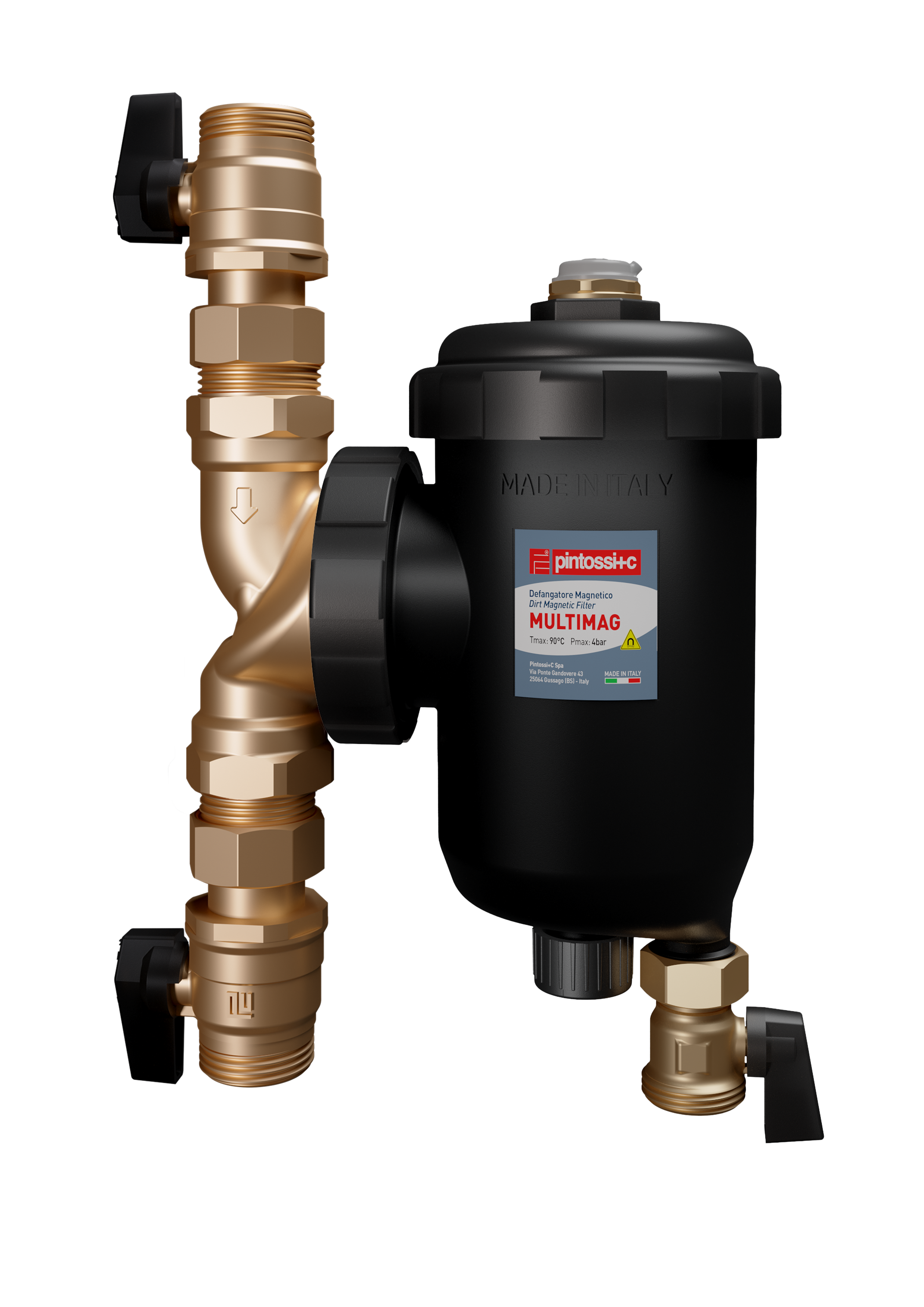

MULTIMAG Magnetic Dirt Separator with brass swivel connections and male fittings. Equipped with impurity drain valve and manual air vent.

The mechanical and magnetic separation process inside the dirt separator is performed through the synergistic action of 4 distinct filtration stages, designed to maximize the retention efficiency of solid and ferrous impurities present in the heat-transfer fluid.

Thanks to its enlarged filtration surface and high-capacity settling chamber, the MULTIMAG filter is particularly suitable for systems that require high performance standards and operate with significant flow rates.

ADVANTAGES

– Dual filtration stage with stainless steel cartridge

– High-power magnet

– Large filtration chamber that slows down the fluid, allowing impurities to settle at the bottom of the filter

FEATURES

High-resistance technopolymer body
Brass swivel fitting
Maximum operating pressure: 4 bar
Maximum operating temperature: 90°C
Magnet: 14.000 gauss
Filter mesh: 800 micron + 300 micron
Suitable fluids: water or glycol solutions (max 50%)
