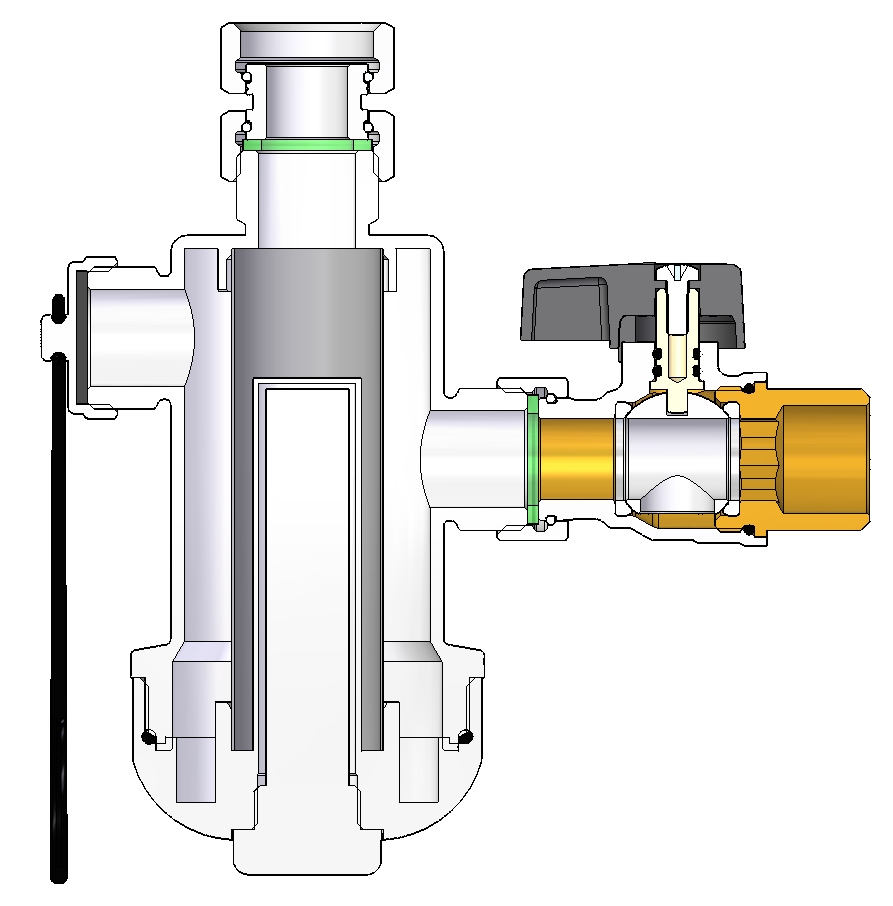

DUOMAG dirt separator with magnet garantuees a costant boiler protection throught the collection of  ferrous and non-ferrous impurities in heating circuits . Swivel nut, discharge cap and ball valve with swivel nut included. Different installation positions depending on the space available.

Color: white
Finishing: nickel plated
Pressione massima d’esercizio: 6bar
Temperatura massima d’esercizio: 90°C
Magnet: 14.100 gauss
Filter: 800 micron
Head loss: 5,65 m³/h
Fluids: water or glycol solutions (max 30%)

ADVANTAGES

– A compact dimension to be installed even in small spaces;

– Body in high resistance technopolymer Grivory, for the worst situations;

– Powerful magnetwith 200 gauss force and a wide attractive surface;

– 800 micron stainless steel filtering mesh;

– External magnet cartridge, for an easy removal during maintanaince operations;

– Wide settling chamber;

– Monoblock Ball valve with swivel nut PN30;

– Double swiveling nut for an easy installation on boiler side;

– Vetical and horizontalinstallation position.

– High flow rates.

Ball valve must be used in totally open-close position.
