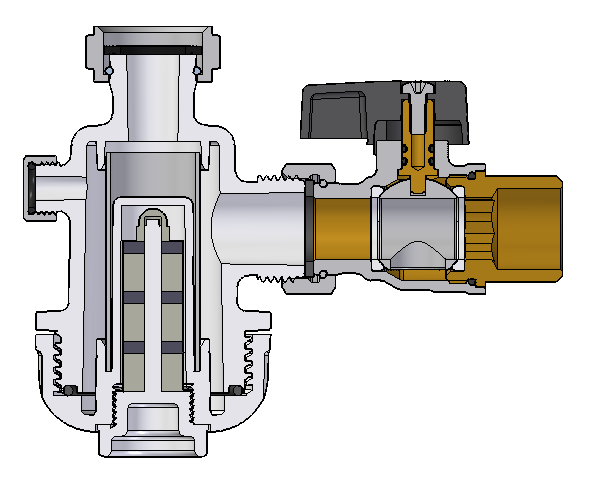

MINIMAG dirt separator with magnet for heating circuit impurity collection and costant boiler protection. Swivel nut, discharge cap and ball valve with swivel nut included. Thanks to its extreme compact dimensions it can be installed even in very small spaces.

Color: white
Finishing: nickel plated
Pressione massima d’esercizio: 6bar
Temperatura massima d’esercizio: 90°C
Magnet: 13.200 gauss
Filter: 800 micron
Head loss: 4,46 m³/h
Fluids: water or glycol solutions (max 30%)

ADVANTAGES

– An extreme compact dimension to be installed even in very small speces;

– Body in high resistance technopolymer Grivory, for the worst situations;

– Powerful magnet with 13.200 gauss force and a wide attractive surface;

– 800 micron stainless steel filtering mesh;

– External magnet cartridge, for an easy removal during maintanaince operations;

– Monoblock Ball valve with swivel nut PN30;

– Swiveling nut for an easy installation on boiler side;

– High flow rates.

Ball valve must be used in totally open-close position.
