Multifunctional DZR manifold with by-pass valves

5029

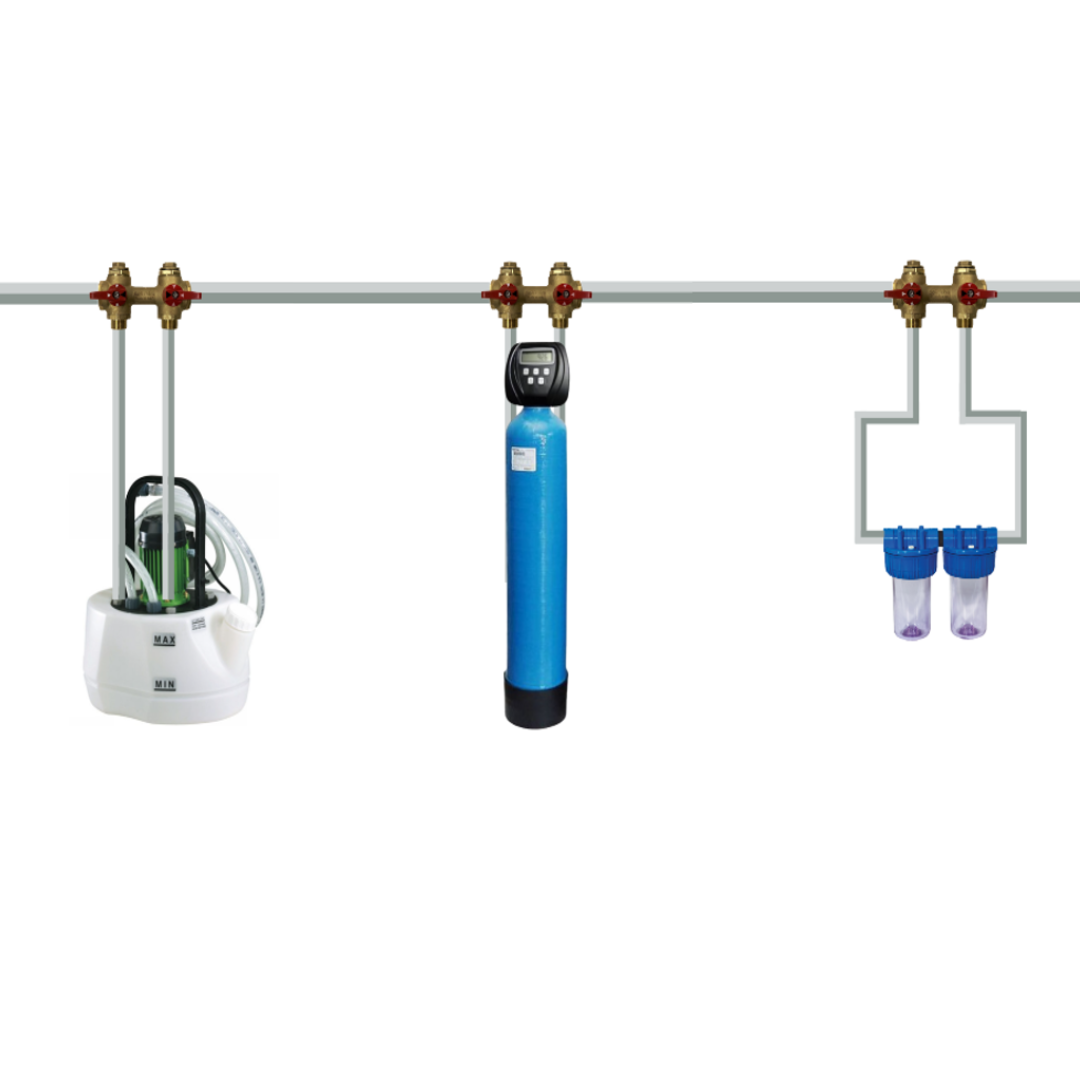

Pintossi+C manifold with 3 ways by-pass valves made with special DZR corrosion resistant brass. The manifold is studied to be used in several applications fields, thanks to the possibility to change fluid direction and the possibility to move the plugs equipped with PTM system (Pintossi Soft Sealing). The manifolds can be installed in several applications, for example:

Water treatments and softners systems;

Water filtration and purification systems;

Pool heat pumps systems.



Thanks to the continuous recirculation of the water, the manifold is equipped with an anti-legionella system and is therefore particularly suitable for use with sanitary water.



This solution guarantees different advantages such as:

– Reduction of connections (only 4 against the 12 usually required);

Reduction of the possibility of leakages;

Substantial reduction in installation times;

Possibility of installation in very small spaces;

Easy usage and maintenance (only two handles points);

Valves with full flow to limit head losses;

Single wall fixing point, fewer holes needed.



Body in DZR forged brass
Gaskets: EPDM/NBR for drinking water
Yellow brass finishing
Max working pressure: 16bar
Max working temperature: 100°C
Fluids: water or Glycol solutions (max 30%)

CodeSize 1Size 2VersionMF
05029000343/4"
112

M = Handle color - F = Finishing color
