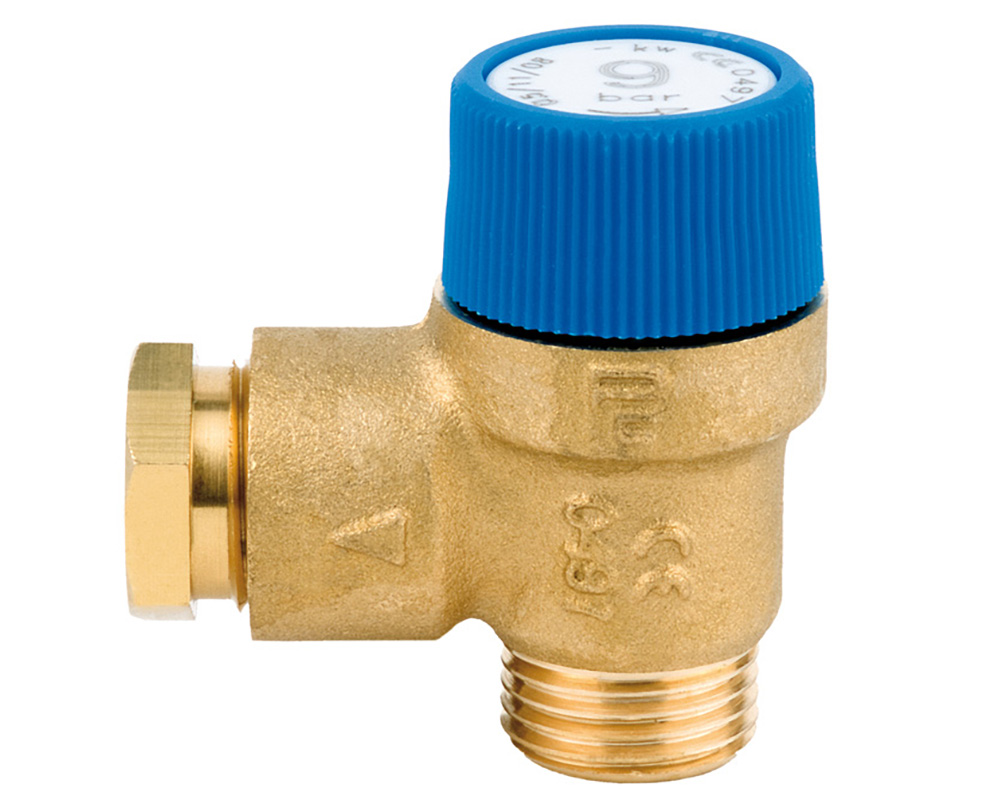

Male safety valve with compression discharge
597
Safety valve with male connection and compression drain.
Body in forged brass
Finishing: yellow brass
Max working temperature: 100°C
Max working pressure: 10bar
Tolerance: 10%
Fluids: water or glycol solutions (max 50%) and air
| Code | Size 1 | Size 2 | Version | M | F | ||
|---|---|---|---|---|---|---|---|
| 0059701215 | 1/2" | Ø 15 | 1,5 BAR | 1 | 100 | ||
| 0059701230 | 1/2" | Ø 15 | 3 BAR | 1 | 100 | ||
| 0059701260 | 1/2" | Ø 15 | 6 BAR | 1 | 100 | ||
| 0059703290 | 1/2" | Ø 15 | 9 BAR | 1 | 100 | ||
| 0059703210 | 1/2" | Ø 15 | 10 BAR | 1 | 100 |
M = Handle color - F = Finishing color
