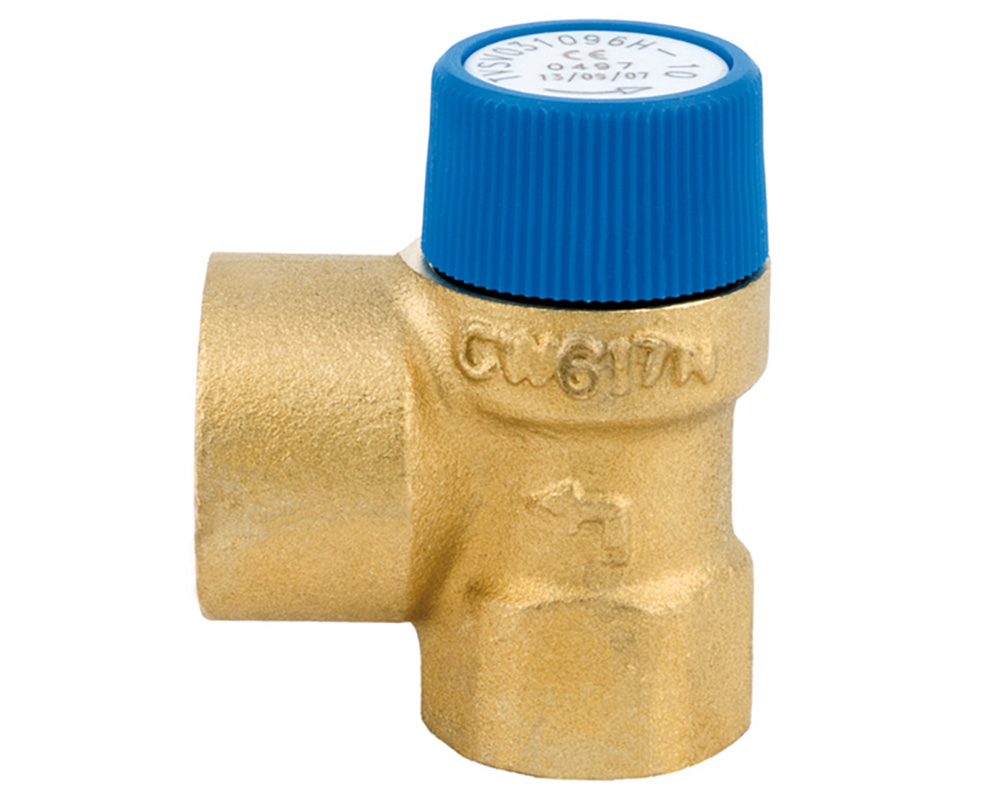

Female safety valve with increased drain
575
Safety valve with female connection and increased drain.
Body in forged brass
Finishing: yellow brass
Max working temperature: 100°C
Max working pressure: 10bar
Tolerance: 10%
Fluids: water or glycol solutions (max 50%) and air
| Code | Size 1 | Size 2 | Version | M | F | ||
|---|---|---|---|---|---|---|---|
| 0057502225 | 1/2" | 3/4" | 2,5 BAR | 1 | 100 | ||
| 0057502230 | 1/2" | 3/4" | 3 BAR | 1 | 100 | ||
| 0057503210 | 1/2" | 3/4" | 10 BAR | 1 | 100 | ||
| 0057503260 | 1/2" | 3/4" | 6 BAR | 1 | 100 |
M = Handle color - F = Finishing color
